Aim 22 Pin Deutsch Harness for MXS, MXP, MXG

The Aim 22 pin harness is an optional extra which is used to add extra channels and advanced functions to your kit.

Key Features :

Suitable for MXS, MXP, MXG	Optional harness
Digital output	22 pin harness

 22 pin Optional Harness for the MX Series

The Aim 90° 22 pin harness plugs into the 22-pin connector on the MXS, MXP or MXG dash loggers.

Several of the advanced functions rely on this harness, which is not included with the standard 37 pin harness which comes as standard with the dash loggers.

The 22 pins optional harness provides access to the following functions:

Analogue sensor channels 5, 6, 7, 8

Digital wheel speed sensor inputs 2, 3, 4

Digital 12V outputs 1, 2

RS232 ECU connection

Please Note: The standard harness that comes with the MXS, MXG and MXP allows 4 inputs. If you would like more inputs for your race data then add this optional harness to your kit.

Adding analogue sensors greater than 4 - The standard harness will allow 4 analogue channels (sensors) - (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure, and (4) Brake Pressure.

Using the 22 pin harness you can add four more analogue channels (sensors) (5) Steering Angle, (6) Throttle Position, (7) Gear Box, and (8) Differential Temperature.

---

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

---

Technical

Aim 22 Pin Deutsch Harness MXS, MXP, MXG

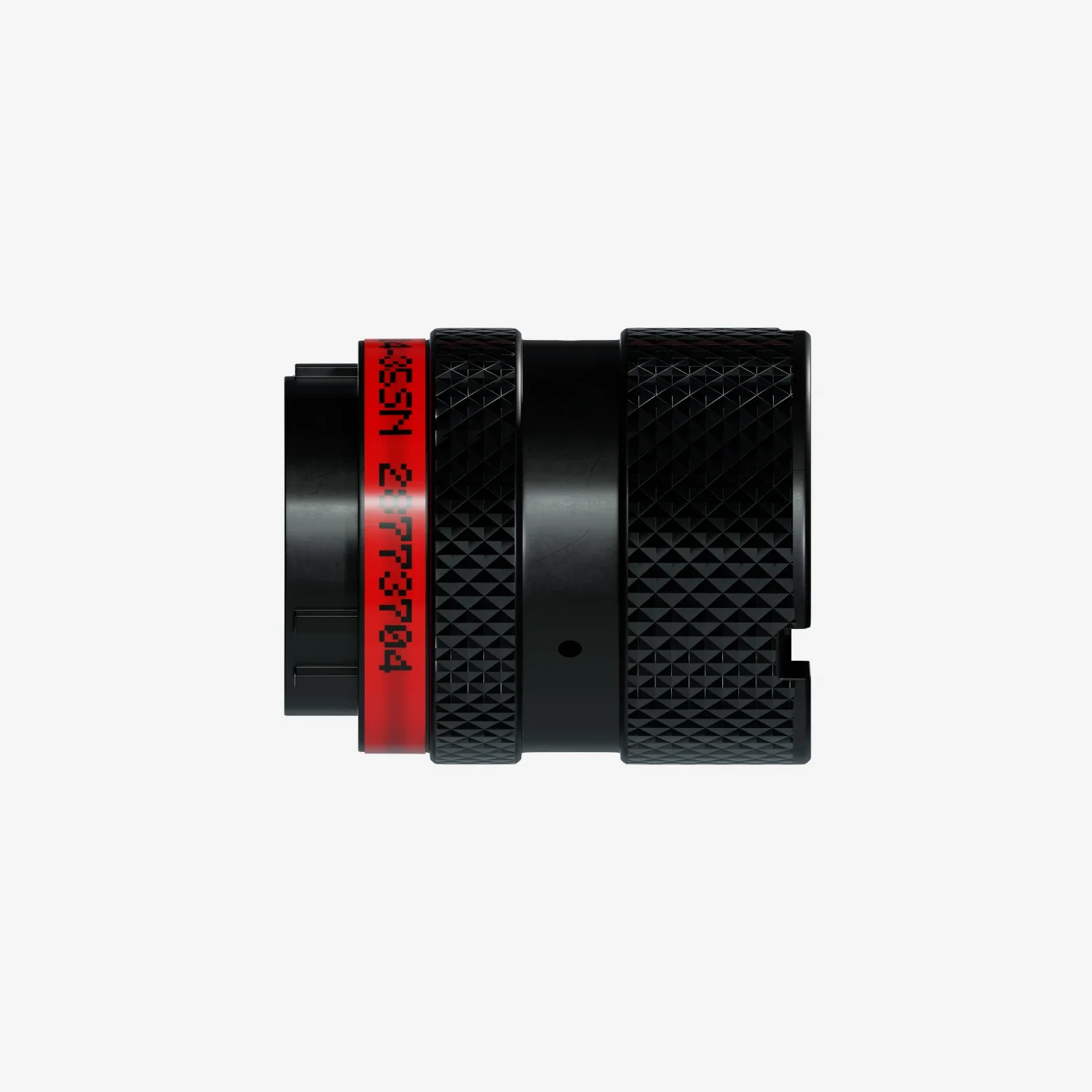

• 22 pin Deutsch Female Flying Connector
• 4 pins Binder 719 Female connector - See table in Downloads Tab
• Table of none ended cables  - See table in Downloads Tab



What's in The Box

Aim 22 Pin Deutsch Harness MXS, MXP, MXG

• 22 pin Harness for MXS, MXP, MXG
