Aim IR Optical Lap Receiver

The Aim Infrared Receiver is a spare or replacement Receiver that is installed on your vehicle and receives the lap signal from the infrared transmitter.

Key Features:

Spare / Replacement Receiver

4 pin connector

Aim IR Optical Lap Receiver

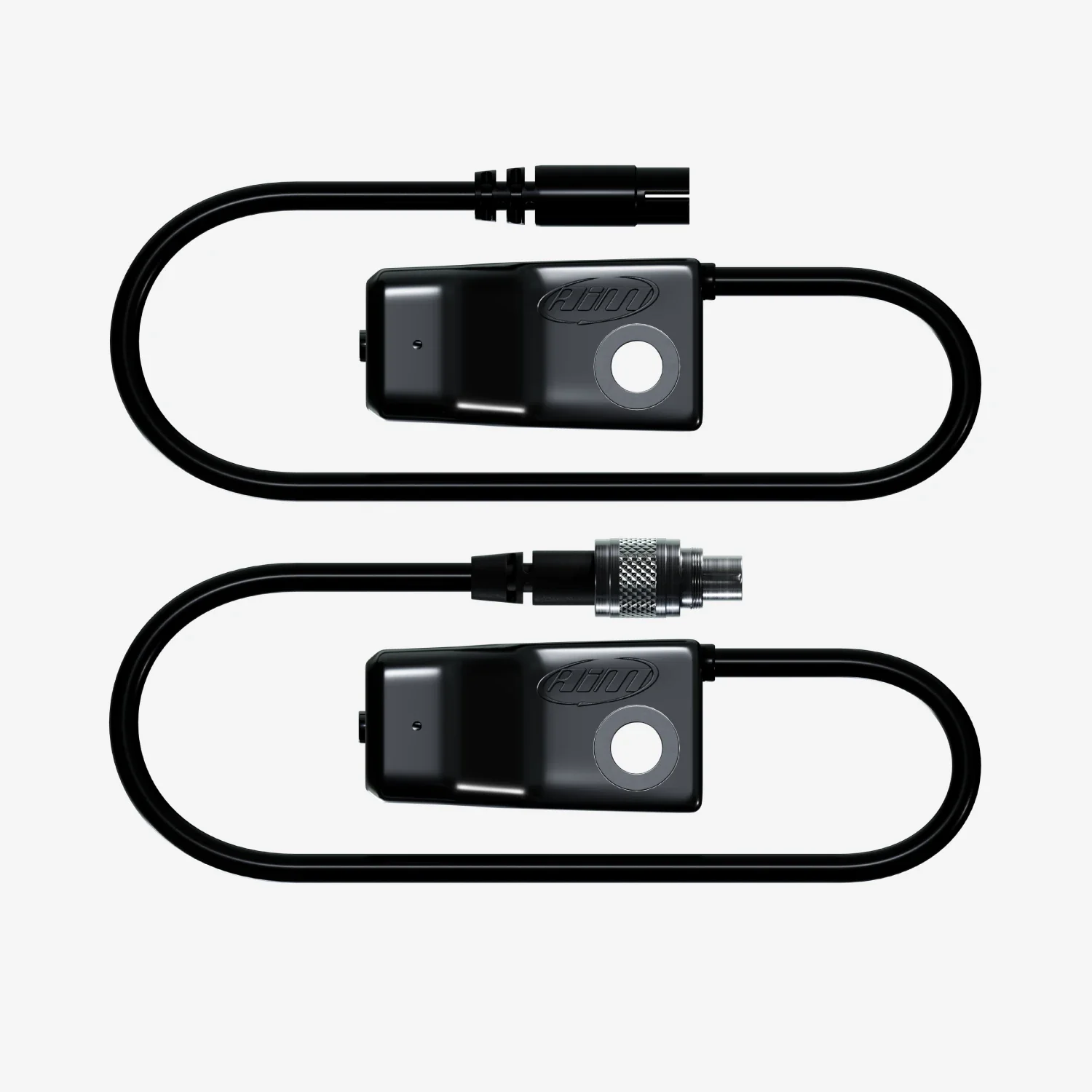

The Aim Infrared Receiver, sometimes referred to as an Optical Lap Receiver, is installed on your vehicle and receives lap signals from the infrared transmitter positioned at the side of the track. It just needs to be pointed to the side of the track where the transmitter is installed to be able to read the signal.

It is also available with a 4 pin metal plug connector.

The infrared receiver is available with a 90cm lead for motorcycles, motocross bikes or karts, and it is also available with a 300cm lead for cars to suit your requirements.

Please Note: The IR Optical Lap Transmitter Beacon is available to purchase in our accessories tab.

---

Installation

The Infrared receiver should be fixed to your vehicle by fixing through the fixing hole at the top of the receiver. When fixing the receiver, be sure that the eye is pointing to the side of the track where the receiver has been installed.

---

Analyse with Race Studio 3

Analysis

With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.

---

Technical

Aim IR Optical Lap Receiver

• Binder connection Pinout:
• 1 - n.c
• 2 - GND
• 3 - V battery (7-15 VDC)
• 4 Optical Lap Signal



What's in The Box

Aim IR Optical Lap Receiver

• IR Optical Lap Receiver

Downloads

	Technical sheet	Race Studio 3
