The Aim MXG 1.3 is a compact but powerful motorsport display and data logger. It offers real time data on its 7” TFT screen, has customisable display layouts, lap timing capabilities thanks to the GPS09 Module (included in the kit), and is compatible with a range of Aim devices and expansions for the ultimate setup.

The MXG digital dash is designed to collect and display data from the powerboat's ECU, the internal accelerometer & gyro, the included GPS09 Module, analogue & digital inputs, and predefined math channels. You can also expand its capabilities by adding up to 8 modules to enhance performance and data acquisition.

Connecting the MXG 1.3 dash to the ECU is simple. You can sample dozens of channels straight from the boat’s ECU (compatible with over 1,000 different ECUs), requiring only a cable connection to the ECU instead of multiple connections and analogue sensors.

The data you can sample will depend on your specific ECU, but it typically includes RPM, engine load, throttle position (TPS), oil, air & water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel ratio).

With its high-contrast 7” TFT display, you can configure pages to suit your needs. The digital display also allows you to easily navigate through the pages to choose from a variety of styles, data types and measurement units. An ambient light sensor adjusts the backlight for optimal brightness, ensuring clear visibility in all lighting conditions.

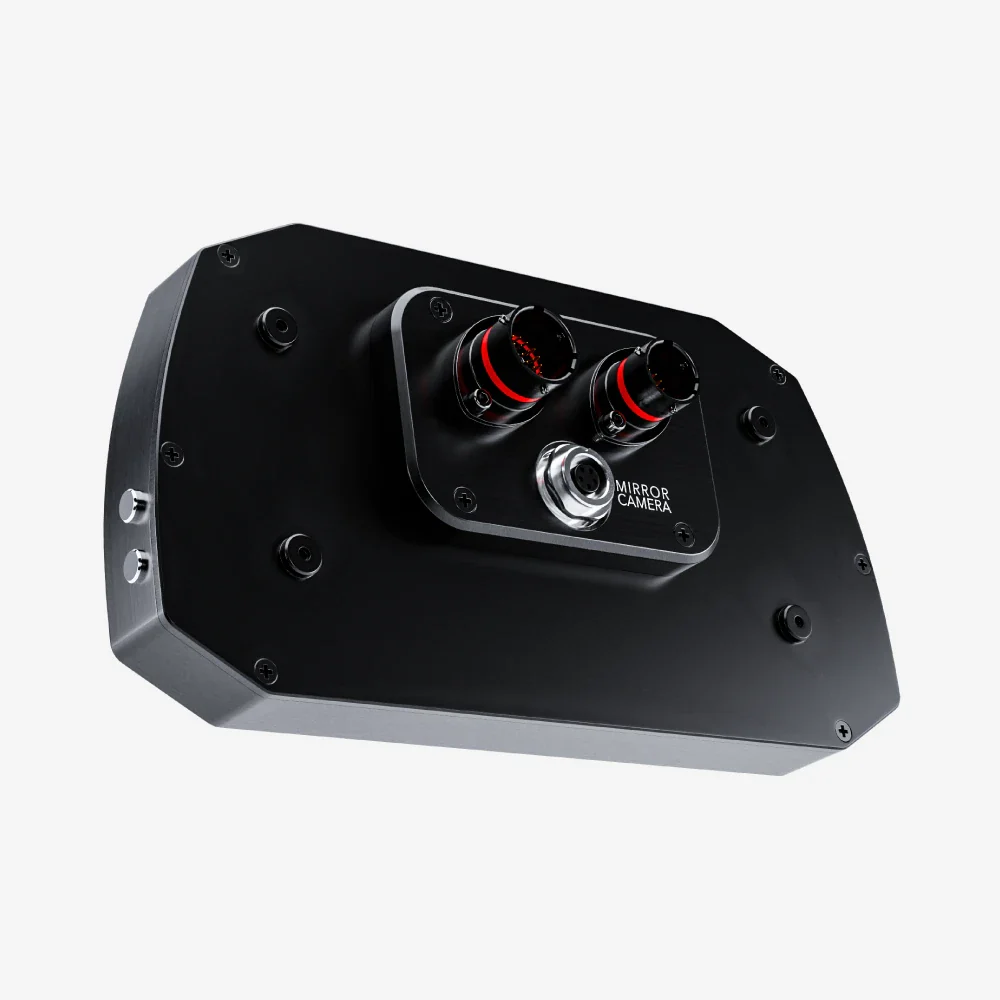

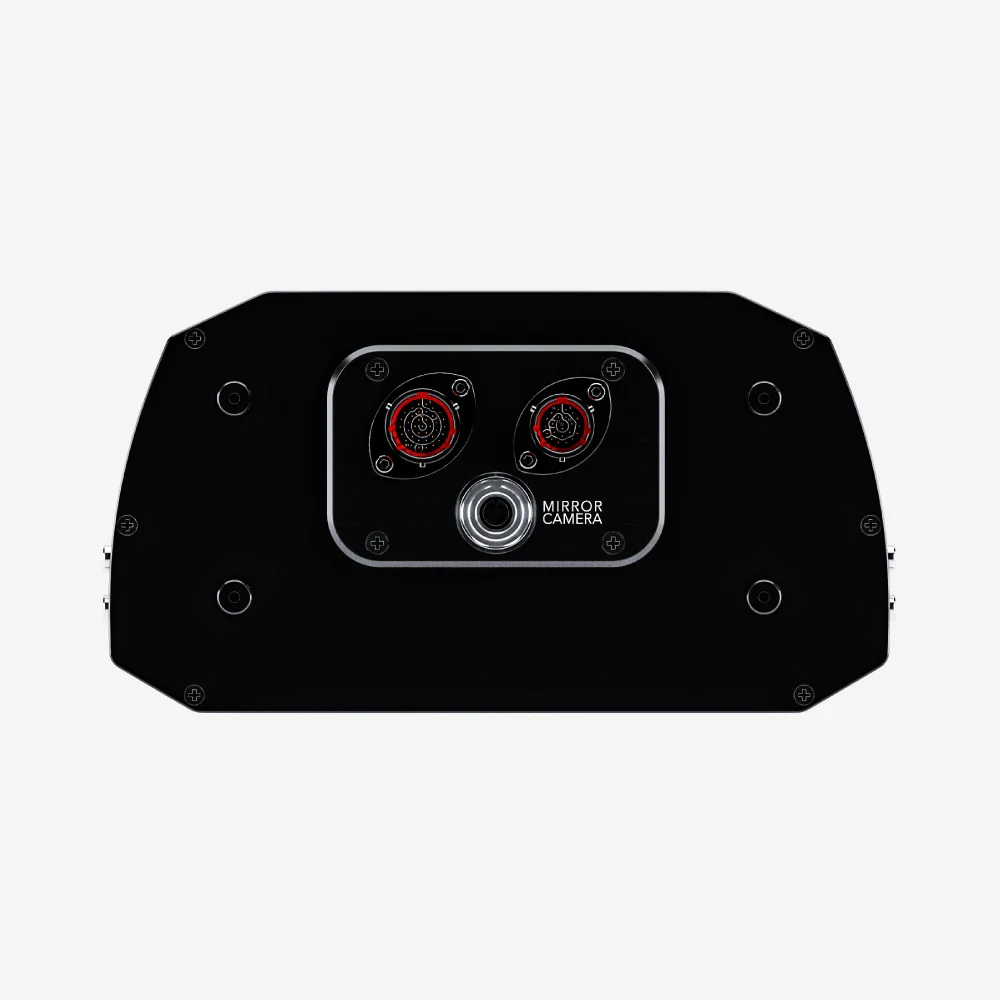

The system also supports 2 analogue camera inputs for a mirror camera function, activated by a push button or event. The camera is sold separately.

With integrated shift lights, you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

The MXG display logger also comes with 8 RGB LEDs, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.

The included GPS09 module, connected to the MXG dash logger via CAN, simplifies lap time calculation and course position analysis. With over 4,000 courses worldwide already stored, including the start and finish line coordinates, you’ll have no trouble monitoring your position and lap times when you’re sailing.

As soon as the MXG is turned on, the GPS module will locate its position, identify course coordinates and start immediately sampling lap and split time. If the course is not in the database, you can easily add the start/finish line coordinates to the MXG using our Race Studio 3 software.

Note: The GPS Module is available with cable lengths of 50cm, 1.3m, 2m or 4m, or a roof version with 2m or 4m length cables.

Expand your MX Logger’s capabilities with a range of compatible accessories to guarantee precision and reliability.

The LCU-One S allows you to perfectly tune the carburetion of your engine to keep it at its best and improve the engine's performance. Alongside the Analogue CAN Converter, you can choose among 5 different split harnesses. Up to 4 thermocouples or 4 analogue channels 0-5V/0-12V are available.

The SmartyCam 3 series also connects to record synchronised video and telemetry ready for analysis in Race Studio 3.

Please Note: A 37 pin harness comes standard in the kit. Should you need more data, you can add our 22 pin harness as an optional extra.
