Aim Solo 2 DL CAN / RS232 2m External Power Cable

The Aim CAN/RS232 2m external power cable connects your Solo 2 DL to your ECU wiring.

Key Features:

7 pin - 712 male binder connection	6 non-terminated wires
Suitable for Solo 2 DL

RS232/CAN External Power Cable

The Aim RS232/CAN 2m external power cable connects your Solo 2 DL to your ECU.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RPM cable.

---

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

---

Technical

Aim Solo 2 DL CAN / RS232 2m External Power Cable

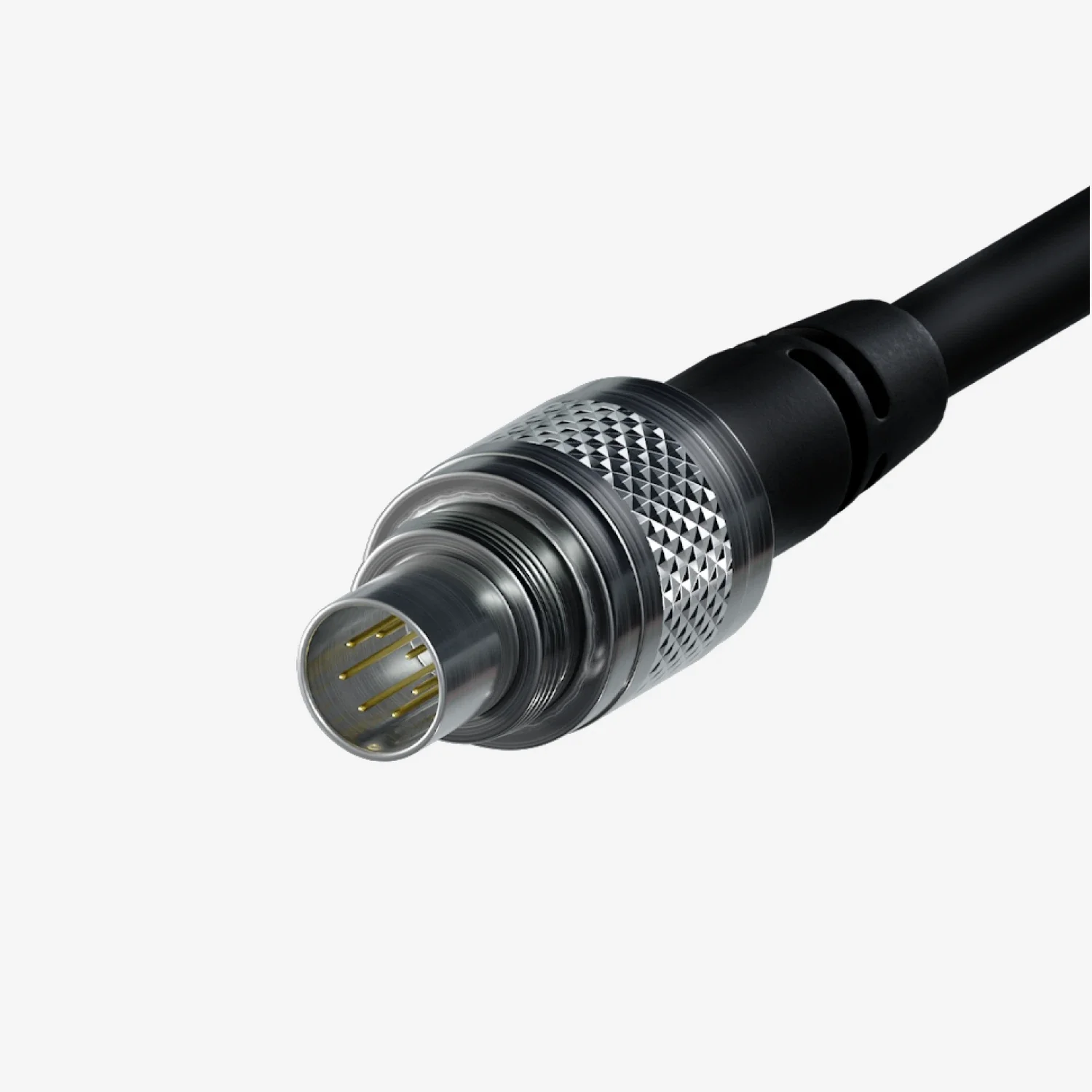

• 7 pin - 712 male binder connection
• 2m length cable
• Free cables:
• White - CAN+
• Blue - CAN-
• Red - 9-15DC
• Blue - ECU RS232 TX
• White - ECU RS232 RX
• Black - GND
• Both blue wires have a tag identifier, stating the connection type.

What's in The Box

Aim Solo 2 DL CAN / RS232 2m External Power Cable

• Solo 2 DL RS232/CAN External Power Cable

Downloads

	Technical sheet	Race Studio 3
