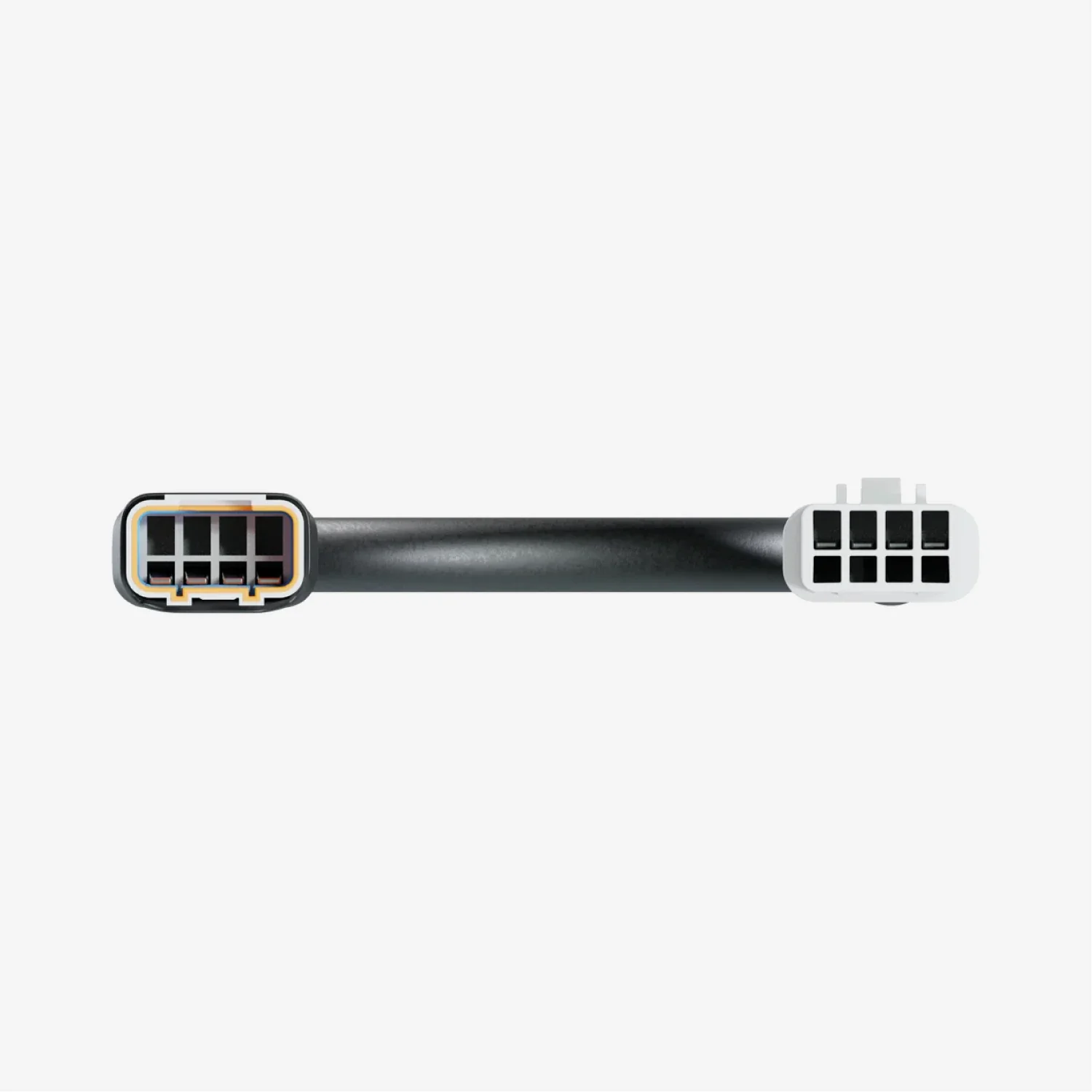

The Aim Taipan universal extension cable has been specifically designed to allow connection of various ancillary systems to the Taipan ECU.
Key Features :
| UC bridge extension cable | 2m or 4m lengthĀ |
| Handlebar Switch extension cable | JST Connector - 04R-JWPF-VSLE-S |
Aim TaipanĀ Accessories
The Aim UC Bridge extension cable has been manufactured to connect the TaipanĀ ECU to the UC bridge and/or the Handlebar Switch
The patch lead is connected to the JST connector on the TaipanĀ ECU and is available in two lengths 2m or 4m.
Below shows a functional diagram of products that can be added to the TaipanĀ ECU:
UC Bridge - Optional Extra
The UC Bridge is the connection between the CAN bus of the ECU and the USB port of your PC. It is available in 2 different licenses:
User License:
A TaipanĀ ECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc.
The UC Bridge is required for two functions:
- Transfer new and different maps to your ECU through the User License UC Bridge.
- Receiving diagnostic information from the TaipanĀ ECU.
Tuner License:
With this license, the tuner can create different maps, configurations and strategies designed for the rider's bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU.
*Please Note: For information regarding the UC-Bridge Tuner, please contact one of our Aim technical team for further information.
TaipanĀ ECU Connections - Optional Extra
The TaipanĀ ECU has 4 connectors :
Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.
Aim Handlebar Switch - Optional Extra
The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings:
| Up to 5 selectable maps | Apply fuel corrections |
| Activate traction control | Activate launch control |
The handlebar switch can also be used as a shift light module.
 |
 |
 |
TechnicalĀ
Aim Taipan Universal Patch Lead
- UC Bridge and/or Handlebar Switch extension cable
- Length: 2m or 4m lengths available
- Connects from TaipanĀ ECU to UC Bridge and Handlebar Switch
- JST Connector - 04R-JWPF-VSLE-S
What's in The Box
Aim Taipan Universal Patch Lead
- Universal Patch Lead inĀ 2m or 4m lengths available at checkout
