The X Log provides a powerful solution for anyone who wants to capture and analyse their performance data without needing an on-board display. It integrates GPS lap timing, ECU data logging, acceleration and gyro measurements, and expansion support in a rugged unit that’s smaller than the palm of your hand.

The X Log is designed to connect seamlessly to your vehicle and your data analysis workflow:

• ECU Connection: Supports thousands of predefined CAN, RS232, or K-Line protocols, or you can build your own protocol via CAN builder.
• Second CAN Option: Configure for Aim expansions, or connect additional sensors and third-party CAN devices.
• Wireless: Integrated Wi-Fi and Bluetooth for fast, cable-free data transfer.

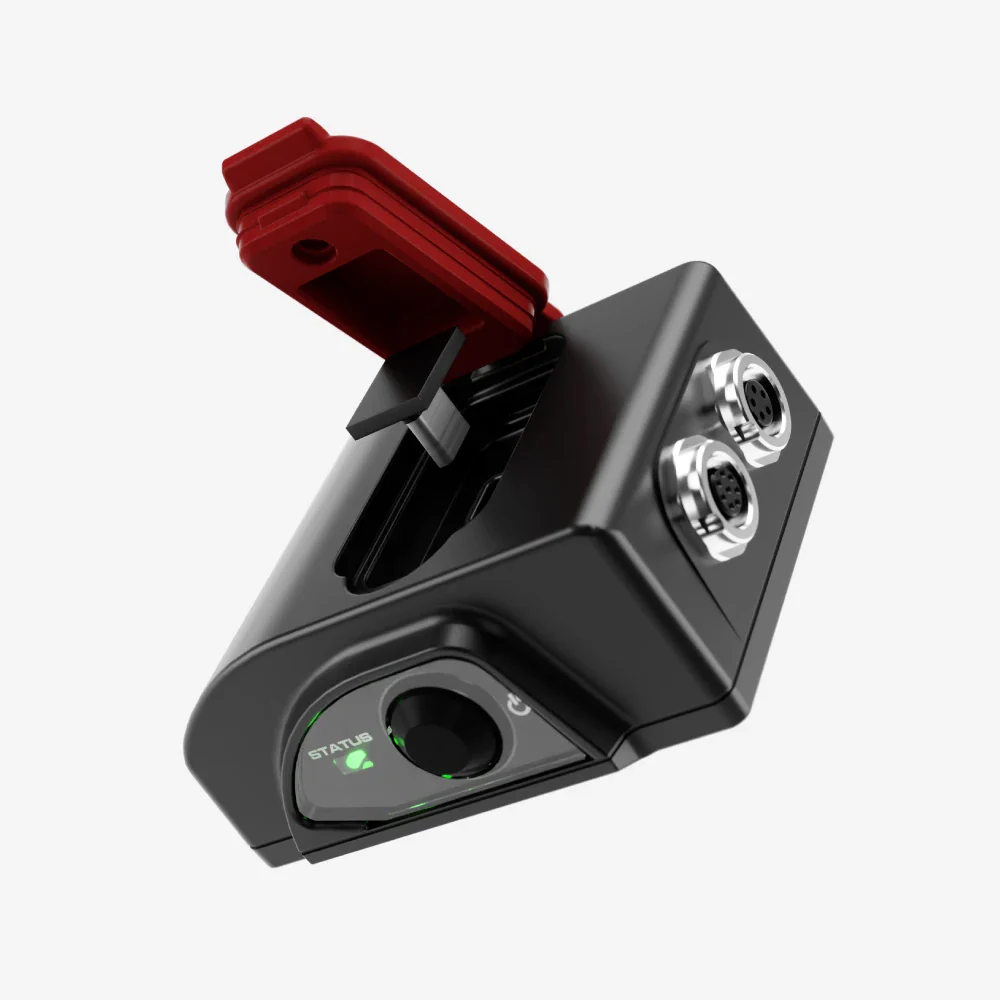

• USB-C & Memory Key: 4GB internal memory plus a removable 16GB USB-C key for quick access.

• GPS Technology: Tracks position and speed at 25Hz using four satellite constellations (GPS, GLONASS, BeiDou, Galileo) with <0.5m precision.
• 6-Axis IMU: Records 3D accelerations and angular velocity at 100Hz, allowing in-depth analysis of braking, acceleration, and chassis behaviour.
• Lap Timing & Sectors: Automatically recognises track layouts, samples laps and sectors, and provides all the raw data for Race Studio 3 analysis.

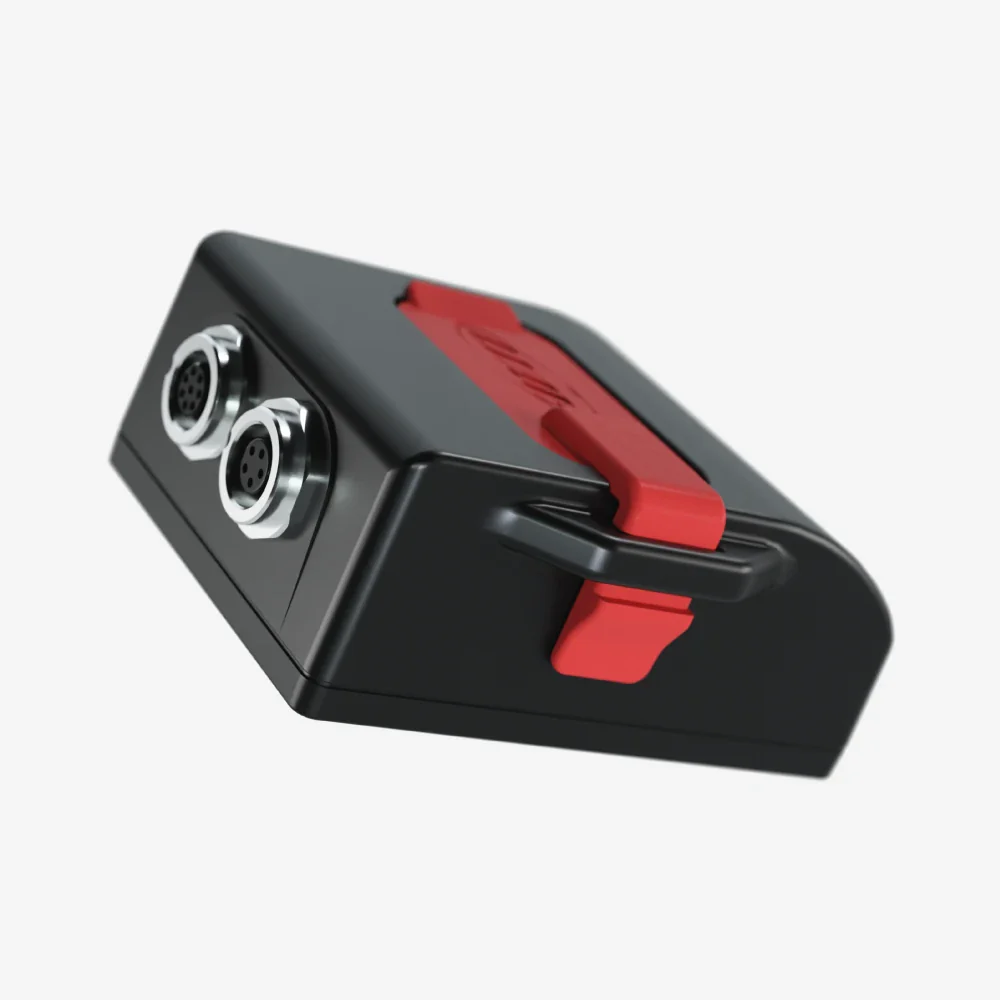

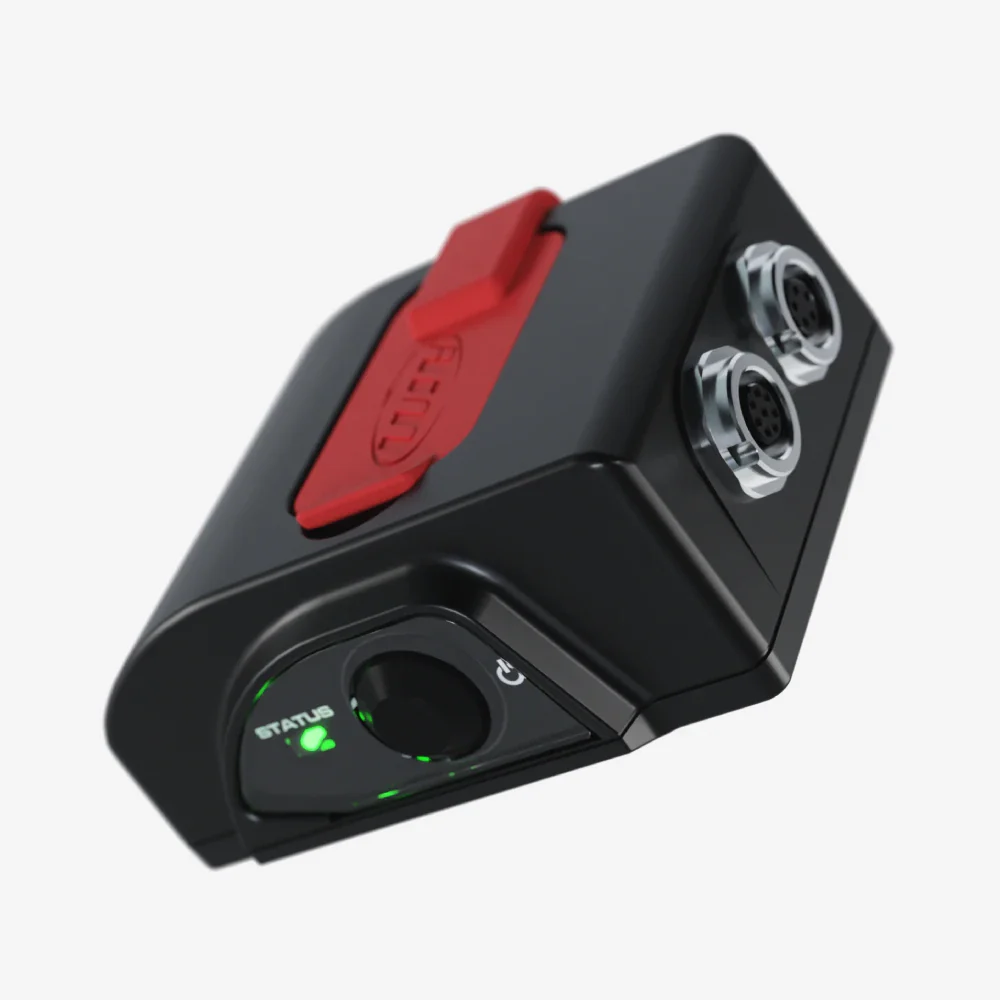

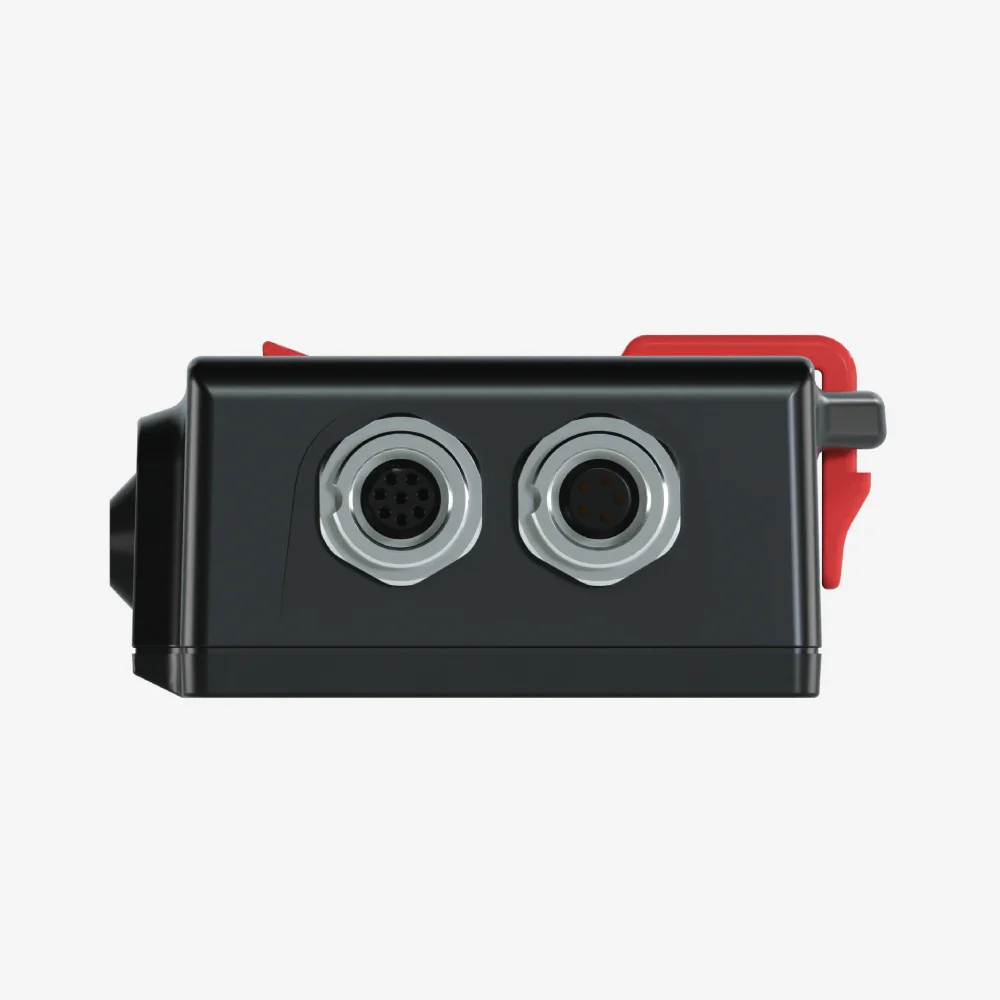

Measuring only 72.3 × 65.3 × 30.3mm, the X Log is compact to fit in even the tightest cockpits. Its rugged, waterproof housing ensures reliable operation in all conditions. With a built-in rechargeable lithium battery (up to 10 hours) and support for an external 8–16V supply, the X Log is built for trackside convenience.

All data logged by the X Log can be downloaded wirelessly or via USB-C, then reviewed in Aim’s professional Race Studio 3 software.

Analyse lap times, sector times, GPS maps, accelerations, engine data, and video (when paired with a SmartyCam 3) to improve your performance and understand your vehicle in detail.

The X Log data logger works seamlessly with Aim’s ecosystem of devices:

• ACC3 Analogue to CAN Converter: Add up to four analogue channels for pressure, temperature, suspension, and other sensors.
• LCU-One Lambda Controller: Capture air/fuel ratios and exhaust data for tuning and performance optimisation.
• SmartyCam: Overlay logged data directly onto video for detailed driver analysis.
• Data Hub: Split EXP ports to connect multiple expansions such as GS-Dash displays, Lambda controllers, or additional converters.

The Aim X Log data logger is essentially a Solo 2 DL without the screen: offering the same logging power, precision, and expandability in a smaller, lighter package. For riders, racers, or anyone working with limited space but still demanding full-scale data analysis, the X Log is the perfect solution.
