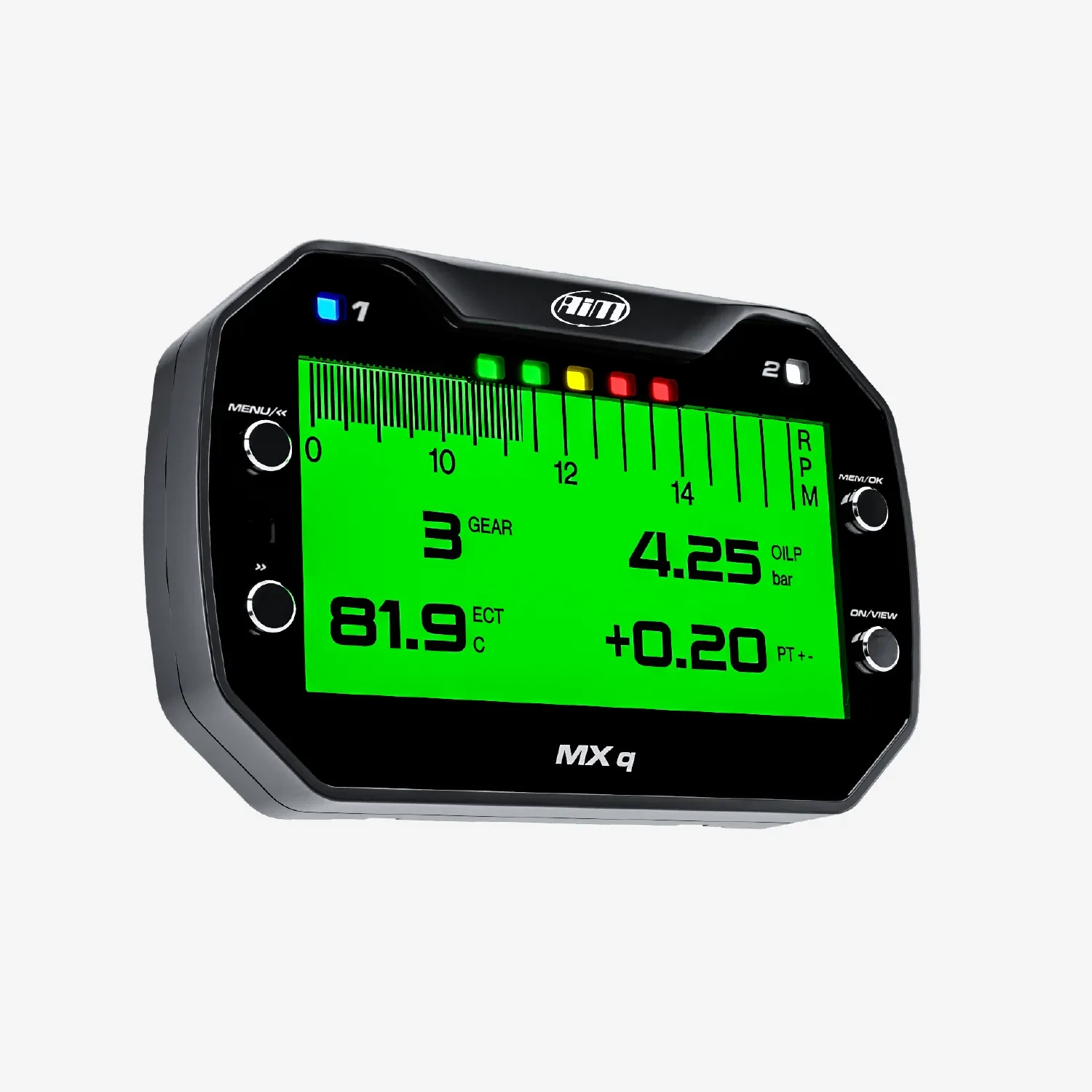

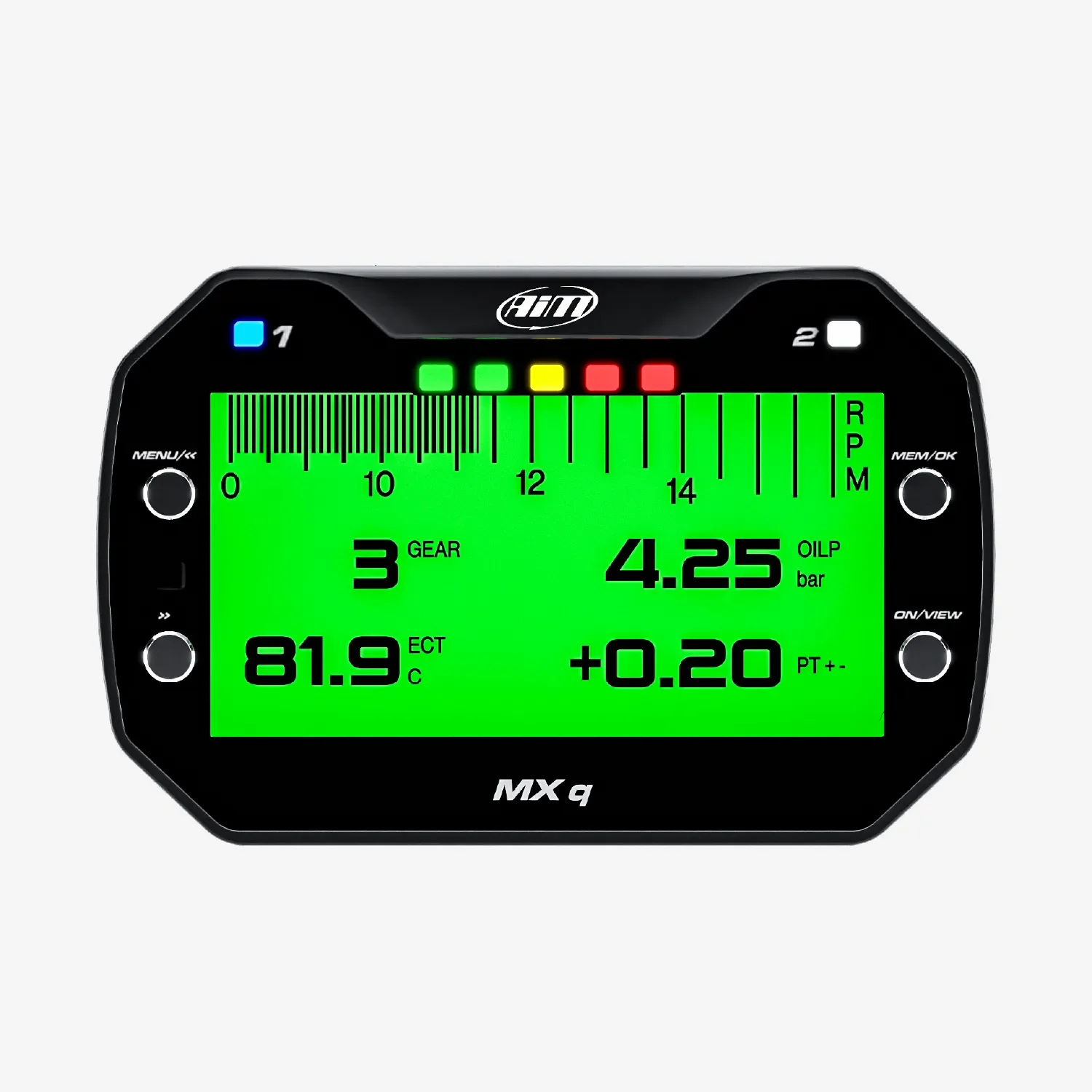

The compact LCD MXq dash display features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicle and to improve their performance. This dash is designed to acquire and display data from your ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.

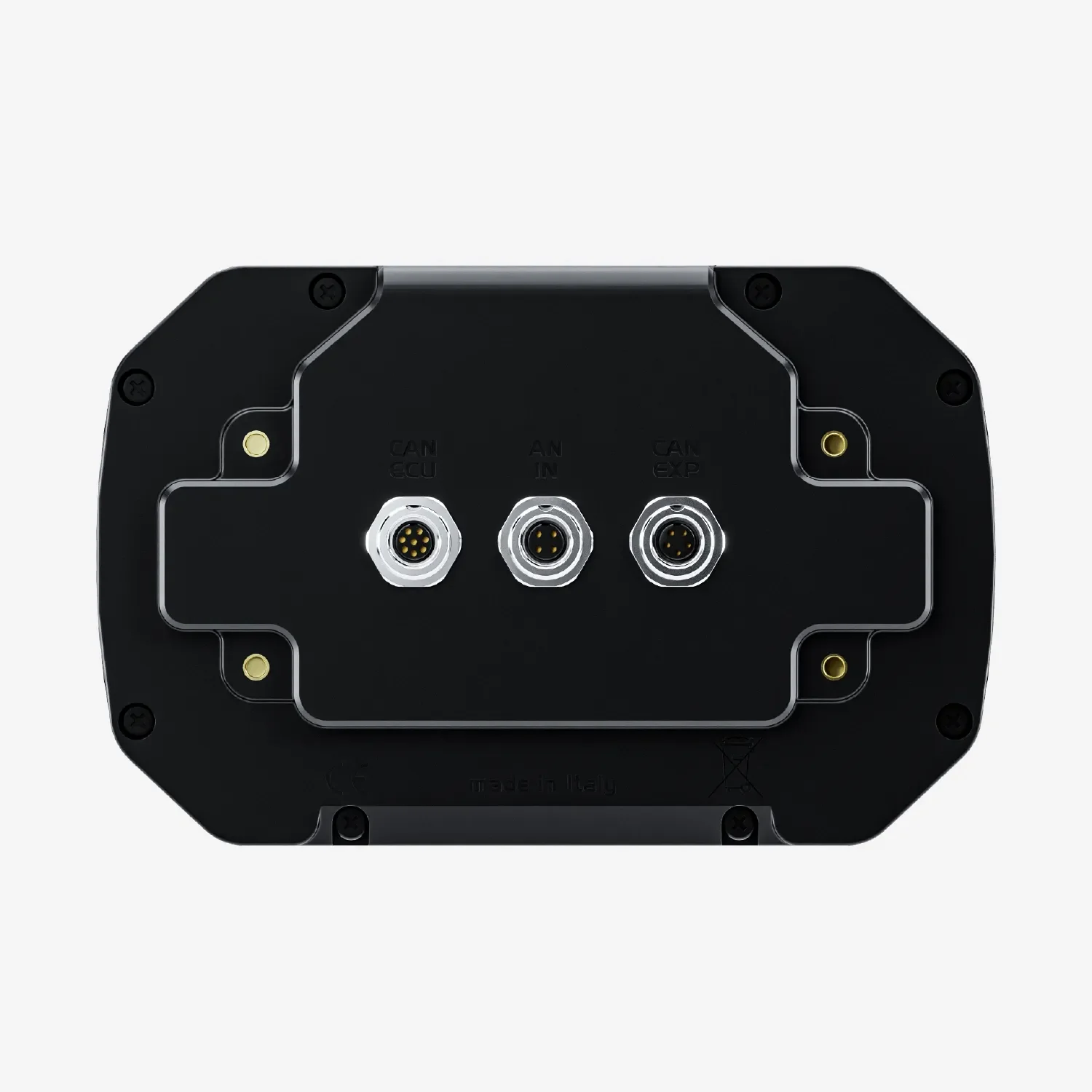

The MXq features 2 CAN connections for obtaining information directly from the ECU, with a wide range of compatible ECU systems available to choose from. The MXq offers the most straightforward method of installation whilst offering 1 analogue and 1 digital input for additional data input.

The display has an integrated shift light system that features 5 fully configurable LEDs which can be customised to your requirements and for each gear. 2 further LEDs can be configured to operate as warning alarms, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements, and the backlight can be switched between 8 available colours, all with high contrast and easy to read graphics.

The information that is displayed on the screen can be fully configured to prioritise the most important information for the driver. If there’s too much information on the screen, the driver can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has ended, all the data can be recalled on the screen, including a summary of the driver's best laps along with max/min RPM, speed and temperatures. If you prefer going through the data in more detail, the MXq and secure data transfer to a laptop or PC up to 50 metres away, so you no longer need to take the laptop to the vehicle.
