Super B Mason 12V20Ah BMS Lithium Battery
Ā

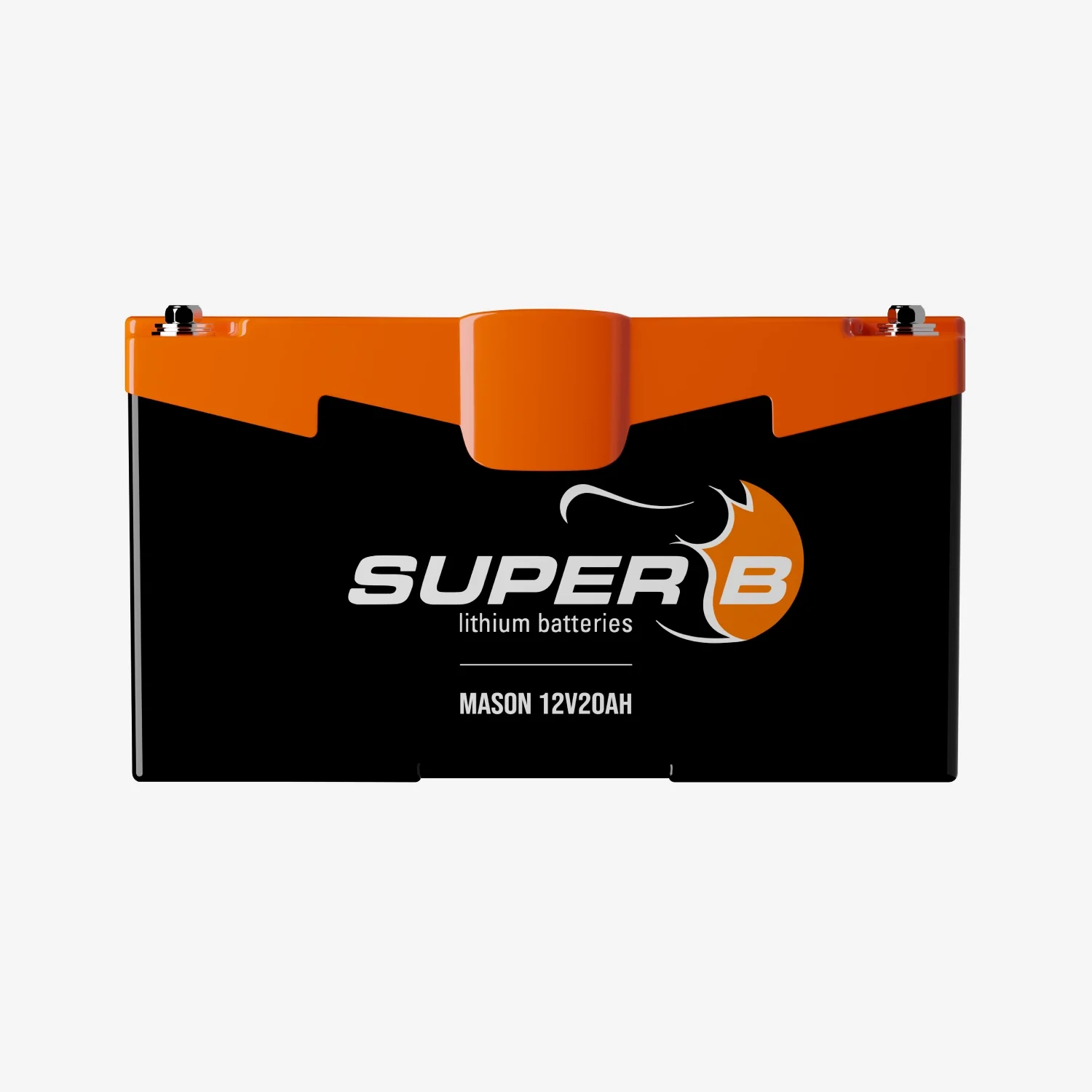

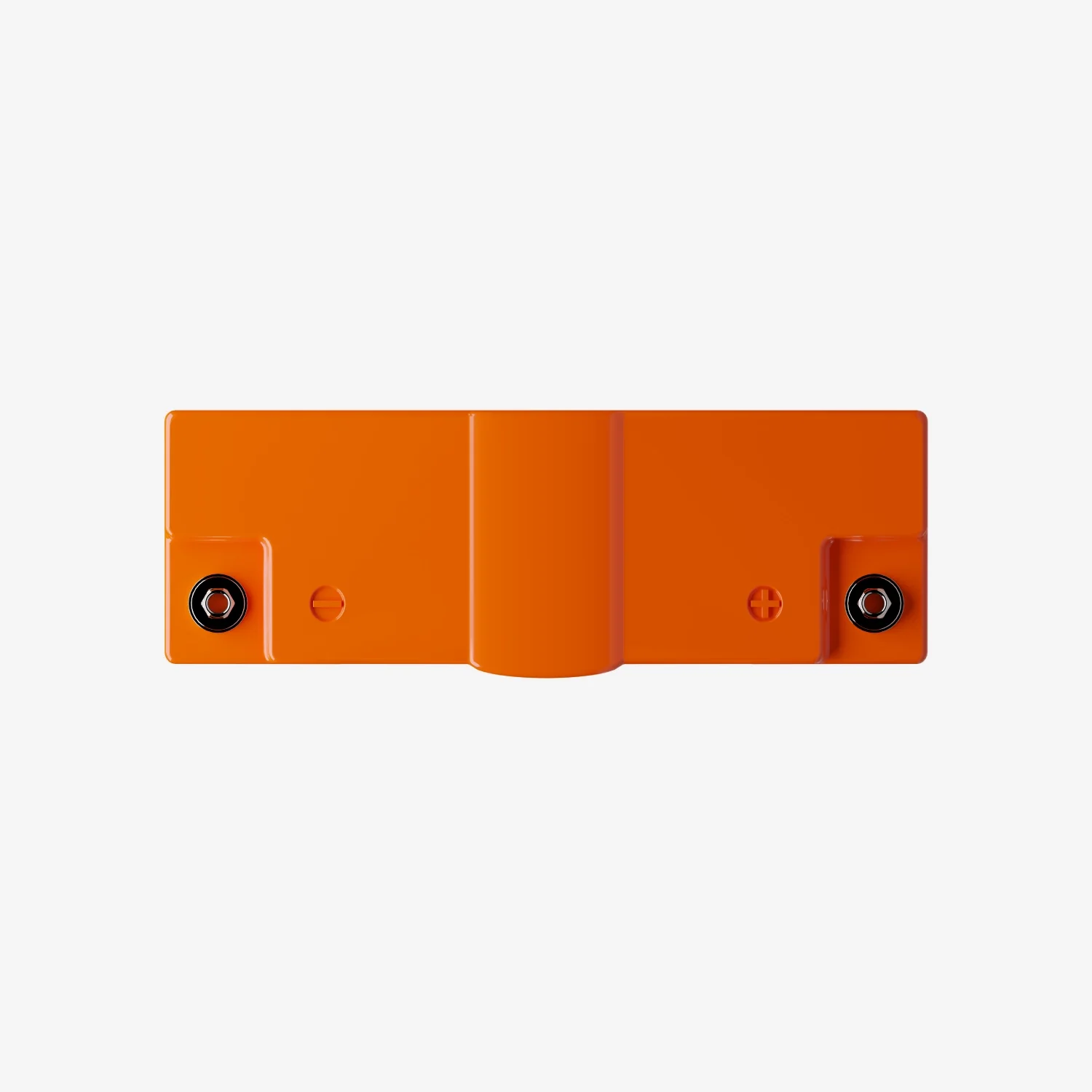

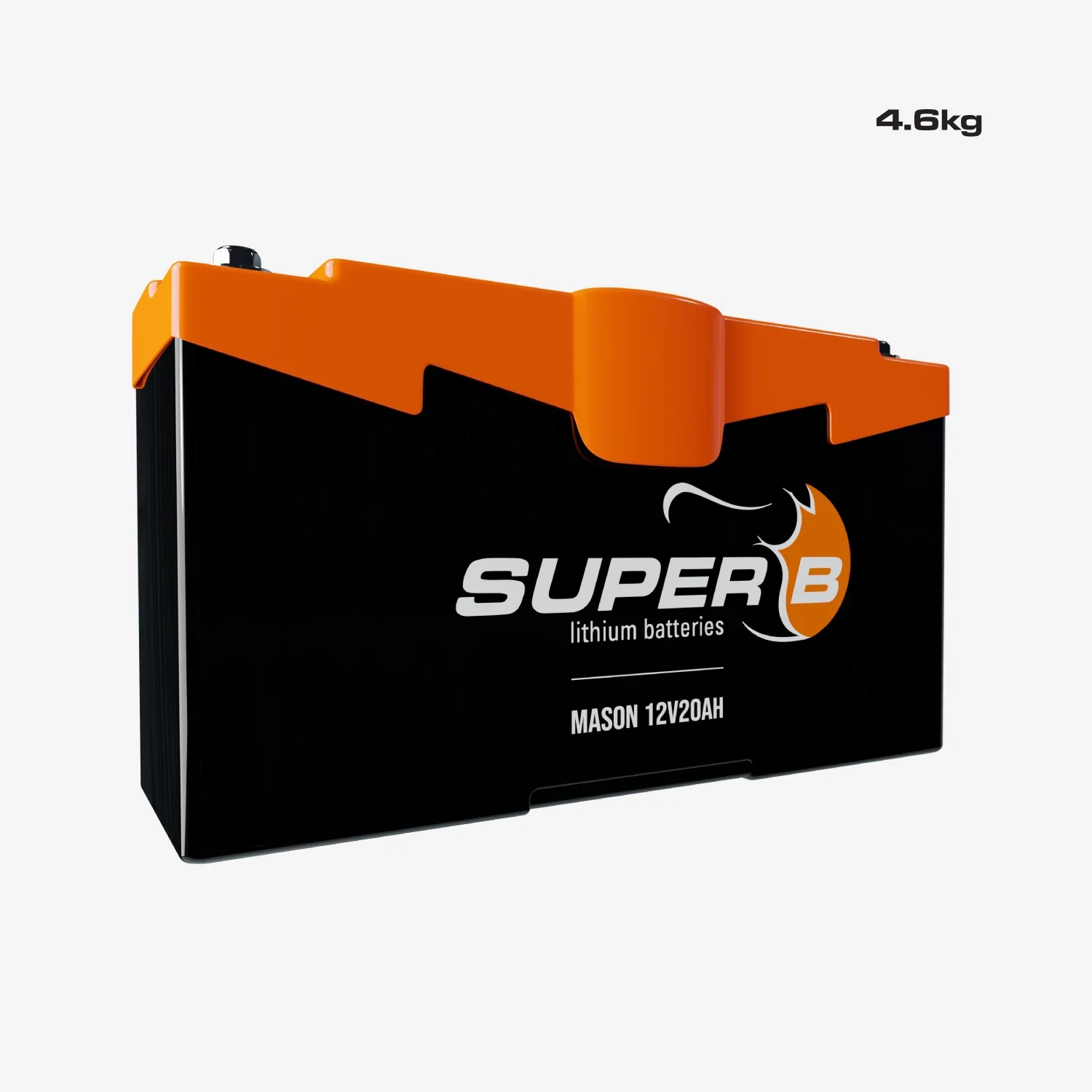

Super B Mason 12V20Ah Lithium Battery
The Mason 12V20Ah power battery is light-weighted, compact and offers high performances. Thanks to its lithium iron phosphate technology and integrated BMS system this new generation battery is extremely reliable and offers optimal safety. This battery is developed for motorsport, motorcycle, automotive and marine applications. Suitable for 12V systems and for use in extreme environments.
Lightweight PowerWith a weight of Ā±4.6kg /10.14lbs, the Mason 12V20Ah power battery saves up to 60% in weight in comparison to traditional lead-acid batteries and is only 1/3 of the size of a conventional battery. This improves not only the performance of your vehicle but also helps to increase the fuel economy. The battery offers a high level of power, fast charging and a long, maintenance free service life. It also has a stable and flat discharge which means you have over 80% of the batteries capacity available. |
Integrated BMSThe Mason 12V20Ah power battery incorporates a Battery Management System (BMS) to ensure a high level of safety during use. The BMS constantly monitors the status of individual battery elements such as cell temperature, cell voltage, charge and discharge currents. The integrated BMS also provides cell balancing. Ā Ā |
Safe & ReliableDue to its high ingress protection class (IP66) the battery is dust tight and waterproof. Therefore the battery can be used in the most extreme environments as well. Performance |
 |
FastĀ charging |  |
 |
Lightweight |  |
 |
Long andĀ maintenance-free lifespan | |
 |
CompactĀ size | |
 |
Low self-discharge | |
 |
Integrated BMS |
|
 |
Safest LithiumĀ Iron PhosphateĀ Technology (LFP) | |
|
TechnicalĀ
Ā
ELECTRICAL SPECIFICATIONS
EnergyĀ 256Wh
Nominal Voltage 12.8V
Open Circuit Voltage 13.2V
Self Discharge <3% per month
Cycle life >1000 (at 10C charge/discharge, 100% DoD)
EqPbĀ (Equals lead-acid) Ā 70 to 100Ah
MECHANICAL SPECIFICATIONS
WeightĀ 4.6 kg / 10.14lbs
Case Material PC - ABS
Ingress Protection IP66
Cell Type / Chemistry Cylindrical - LiFePO4
CHARGE & DISCHARGE SPECIFICATIONS
Charge Voltage 14.3V - 14.6V
Max Charge CurrentĀ 66A
End of Discharge Voltage 8V
Discharge Current ContinuousĀ 260A
Discharge Pulse Current (1 sec)Ā 892A (45C)
TEMPERATURE SPECIFICATIONS
Discharge Temperature -20Ā°C to 55Ā°C |Ā -4Ā°F to 131Ā°F
Storage Temperature -20Ā°C to 45Ā°C |Ā -4Ā°F to 113Ā°F
COMPLIANCE SPECIFICATIONS
Shipping Classification UN 3480
1 Do not charge below 0Ā°C / 32Ā°F
GENERAL PRODUCT SPECIFICATIONS
Battery Designation 4IFpR27/66-8
Ā
Data Sheet
 |
| Technical sheet |
Guide
 |
| Quick Start Guide |
User Manual
|
|
| User Manual |
