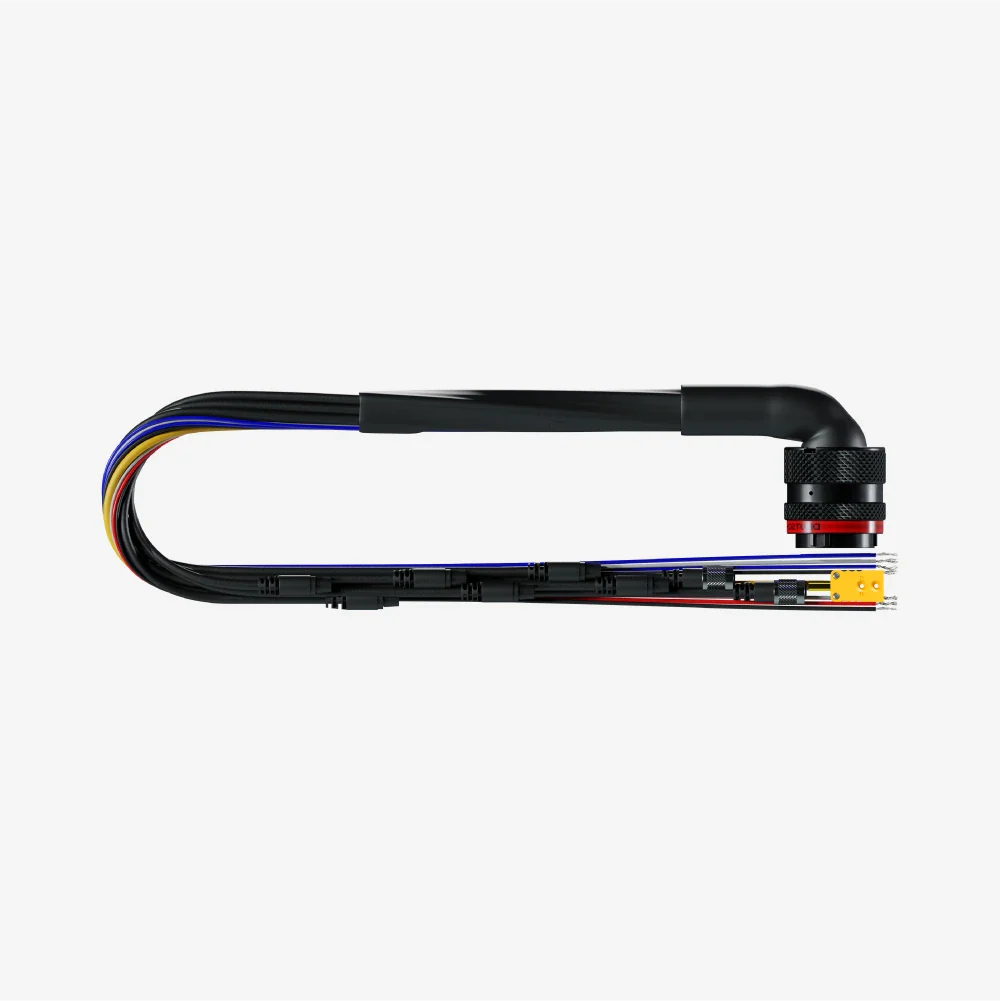

Aim 37 Pin Deutsch Harness with 1 Thermocouple MXS, MXP, MXG, MXm

The Aim 37 pin Deutsch Harness with one thermocouple connector to connect a K-Line type sensor.

Key Features :

Suitable for MXS, MXP, MXG, and MXm	Digital output
37 pin harness	One thermocouple connector

 37 pin Harness with One Thermocouple Connector for the MX Series

The Aim 37 pins harness has been designed with one thermocouple connector, this will enable you to connect a thermocouple sensor to your device.

This harness can be used to replace a damaged harness or for a second vehicle installation when sharing a dash logger.

The Aim 37 pins Deutsch harness functions are listed below:

Analogue sensor channels (sensors) 1, 2, 3, 4
Digital wheel speed channel 1
Optical lap timing sensor output
CAN expansion
Power+
Ground-
CAN ECU connection
K-Line connection

Please Note: If you wish to add extra race data then you will need the 22 pin Deutsch harness. This will add four more analogue channels (sensors). Available in the Accessories Tab.

Also available is a 37 pins Deutsch harness with two thermocouple connectors, available in the Accessories Tab.

---

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

---

Technical

Aim 37 Pin Deutsch Harness with 1 Thermocouple MXS, MXP, MXG, MXm

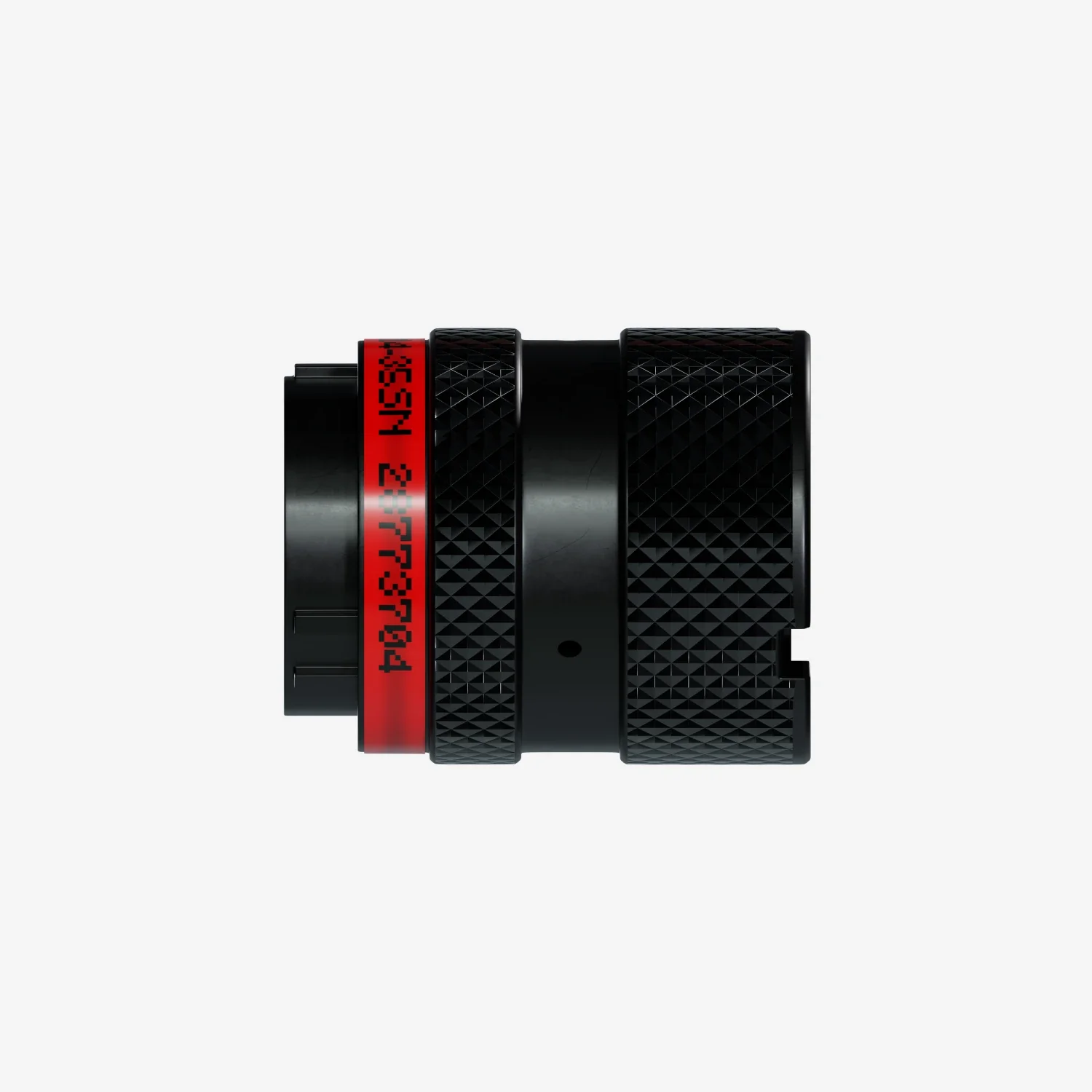

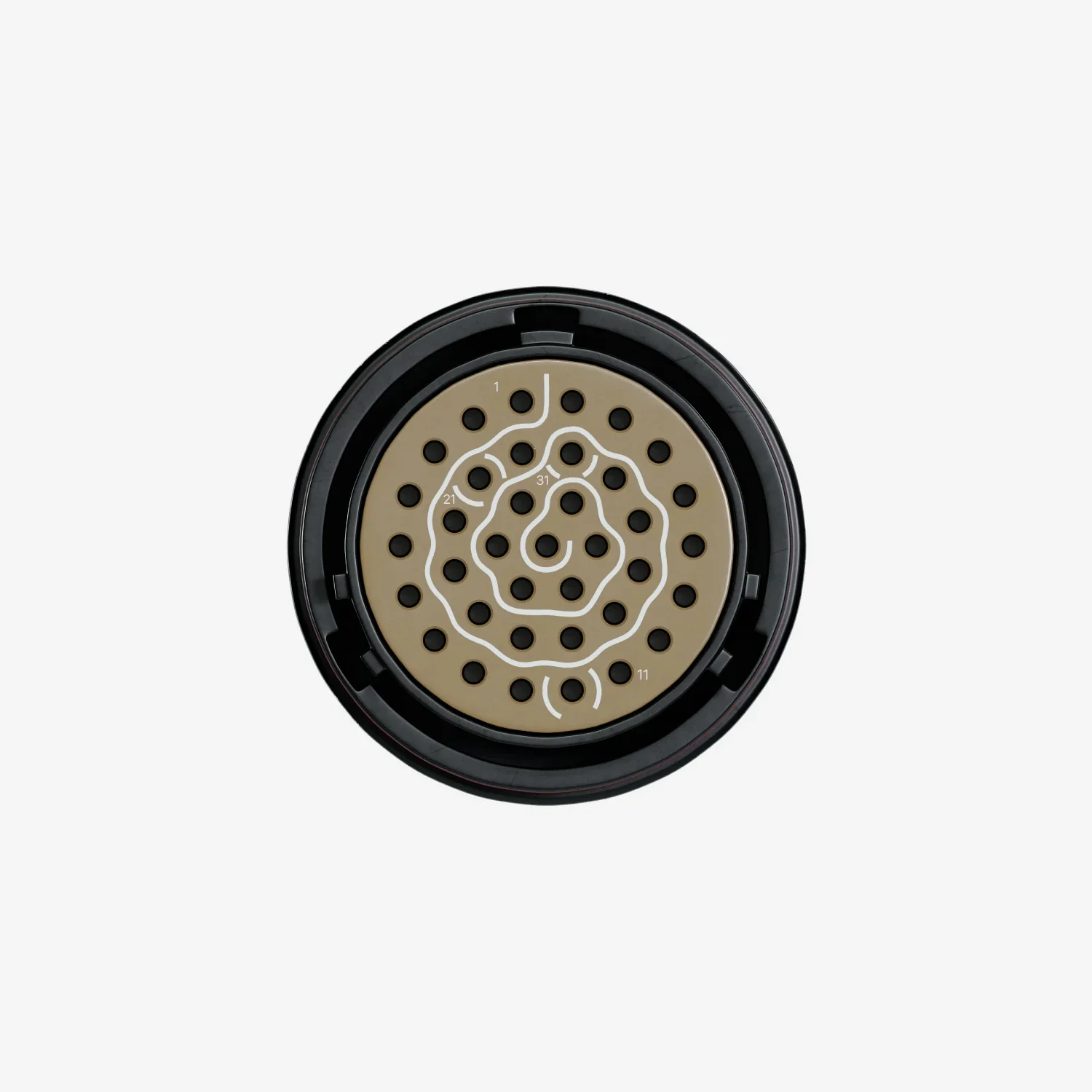

• 37 pin Deutsch Female Flying Connector
• 4 pins Binder 719 Female connector - See table in Downloads Tab
• 5 pins Binder 712 Female Connector - See table in Downloads Tab
• 7 non-ended cables - See table in Downloads Tab
• Female Thermocouple Connector - See table in Downloads Tab



What's in The Box

Aim 37 Pin Deutsch Harness MXS, MXP, MXG, MXm

• 37 pin Deutsch Harness
