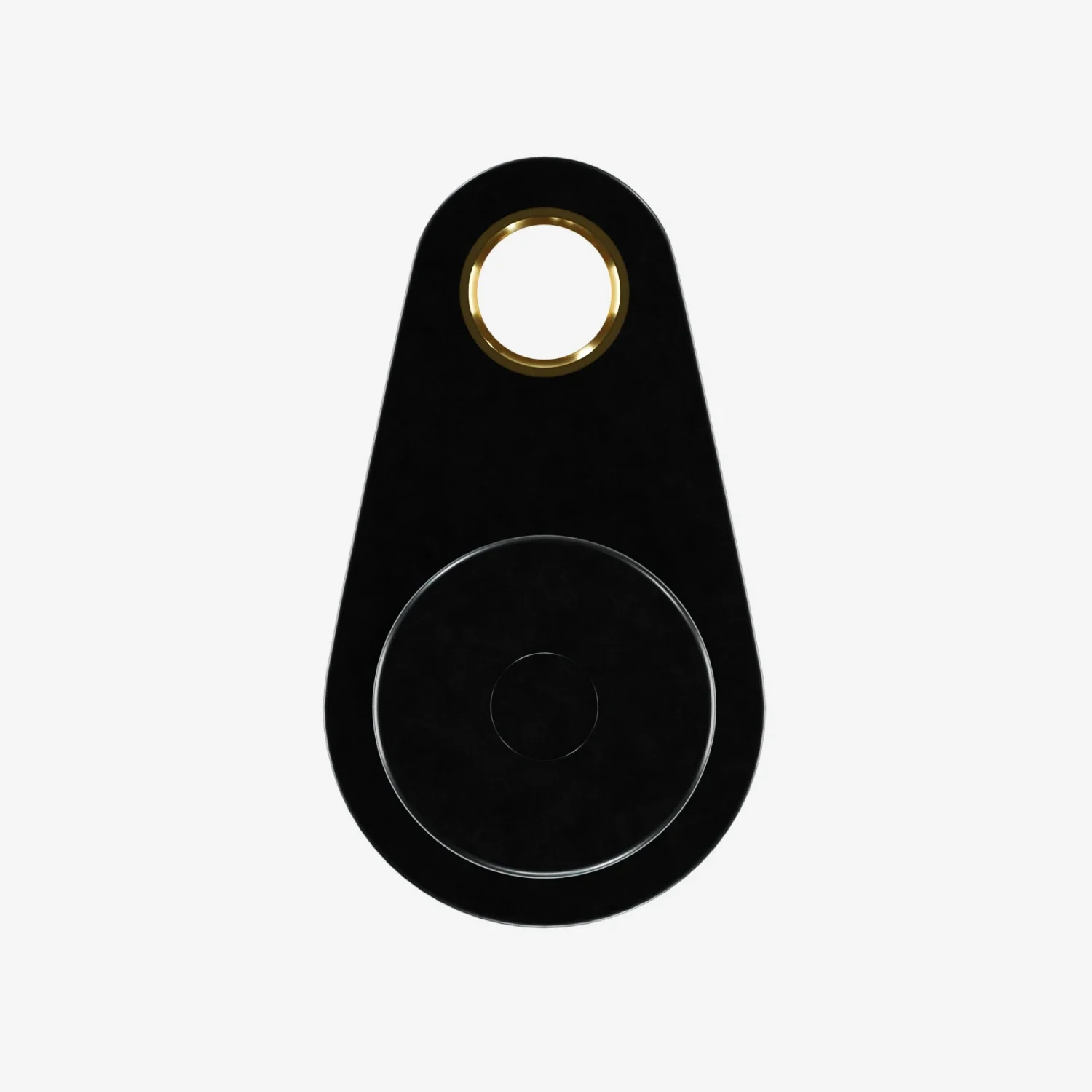

Aim M12 Hall Speed Pickup 719 Binder

The Aim Hall Effect Sensor is a non-contact device that needs a metallic trigger to pass in front of it.

Aim M12 Hall Speed Pickup 719 Binder

The Hall Effect Sensor is a non-contact device that needs a metallic trigger to pass in front of it. Again, a bracket will usually need to be fabricated to mount the sensor in a suitable position. Would you please ensure that the distance between the sensor and trigger is in a 0.5 – 2.0 mm (0.007-0.07 inches) range? Cable length is approximately 2.0m. A higher-quality Honeywell ABS hall effect sensor is also available.

The 719 connection will suit the MXL2, all MX Series including Strada. Use with 719-719 patch lead.

Technical

Aim Hall Effect Wheel Speed Sensor

• Power supply voltage: 4.5-24 VDC
• Current consumption: 10 mA (typical) 20 mA (max)
• Output signal type: 0-5V
• Max current output: 20mA
• Max operating frequency: 100kHz
• Sensibility distance: 0.5 to 2mm (from 0.007 to 0.07 inches)
• Recommended distance: 1mm
• Operating temperature range: from - 40 to 150°C (from 104 to 302F)
• Cable length: 80mm

What's In The Box

Aim Hall Effect Wheel Speed Sensor

• 1 x Hall Effect Speed Sensor

Downloads

Technical Sheet		Race Studio 3
