Aim RPM Coil Adaptor For EVO4 - ARP04

This Aim adaptor has been designed to supply RPM signals to an Aim EVO4 data logger on vehicles without an ECU.

Key Features :

Suitable for EVO4 logger	For older vehicles

Aim RPM Coil Adaptor For EVO4 - ARP04

This Aim adaptor has been designed to supply RPM signals to an Aim EVO4 data logger on vehicles without an ECU. It connects to the coil and filters the signal, reducing noise and generating the correct square compatible with the EVO4 logger.

---

Connecting The RPM Coil Adaptor

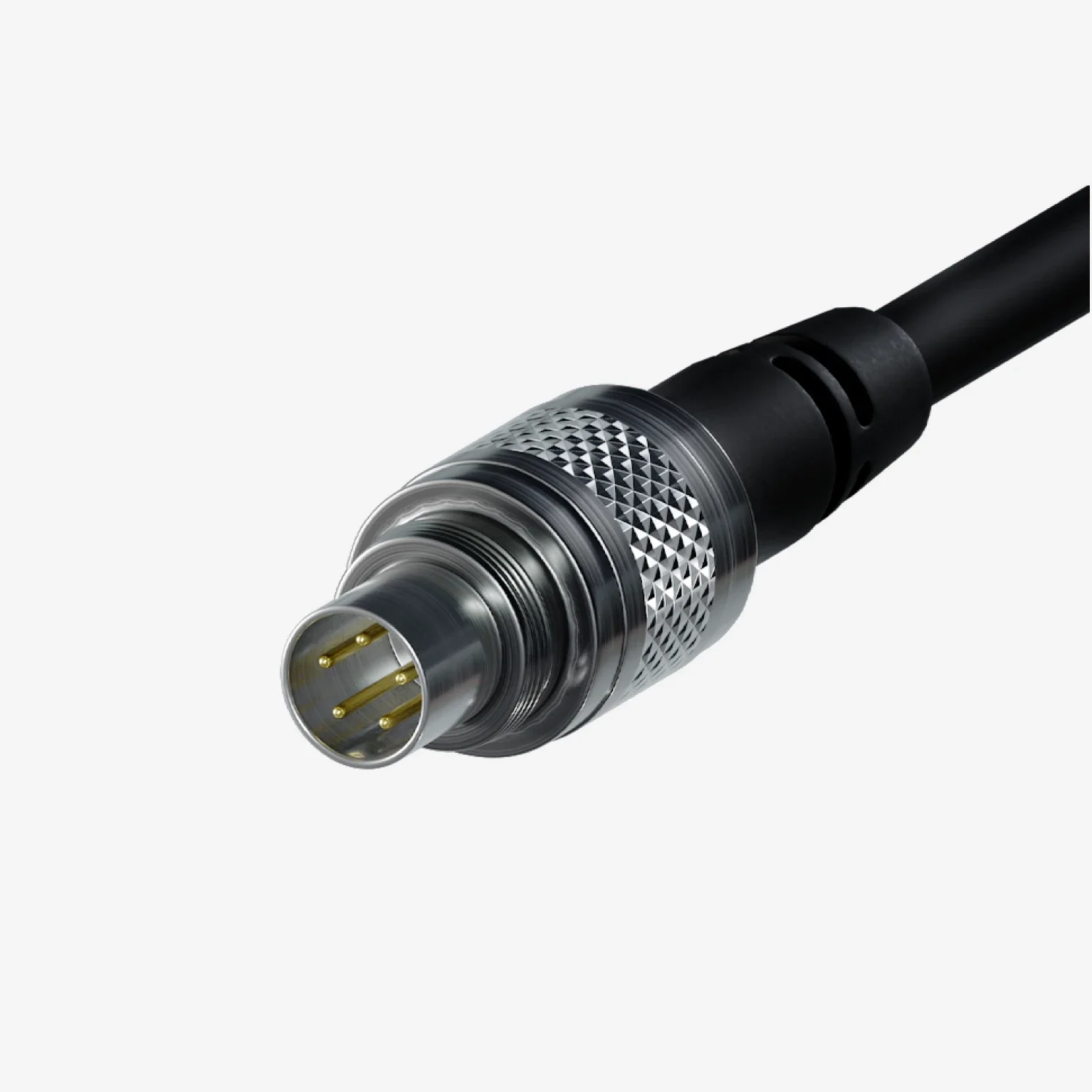

Connect the cable that ends with a five-pin binder 712 male connectors to RPM input of EVO4
Connect the black cable labelled GND to vehicle reference ground
Connect the red cable labelled 9-15 VDC to a switched 12V power supply
Connect the white cable labelled RPM 150-450V to the coil earth trigger
The yellow cable labelled DIGIT OUT is EVO4 digital output

---

Technical

Aim RPM Coil Adaptor For EVO4 - ARP04

• Connecting the RPM Coil Adaptor
• Connect the cable that ends with a 5 pins Binder 712 male connector to RPM input of EVO4
• Connect the black cable labelled GND to vehicle reference ground
• Connect the red cable labelled 9-15VDC to a switched 12V power supply
• Connect the white cable labelled RPM 150-450V to the coil earth trigger
• The yellow cable labelled DIGIT OUT is EVO4 digital output

What's in The Box

Aim RPM Coil Adaptor For EVO4 - ARP04

• 1 x RPM Coil Adaptor for EVO4S

Downloads

	Technical sheet	Race Studio 3
