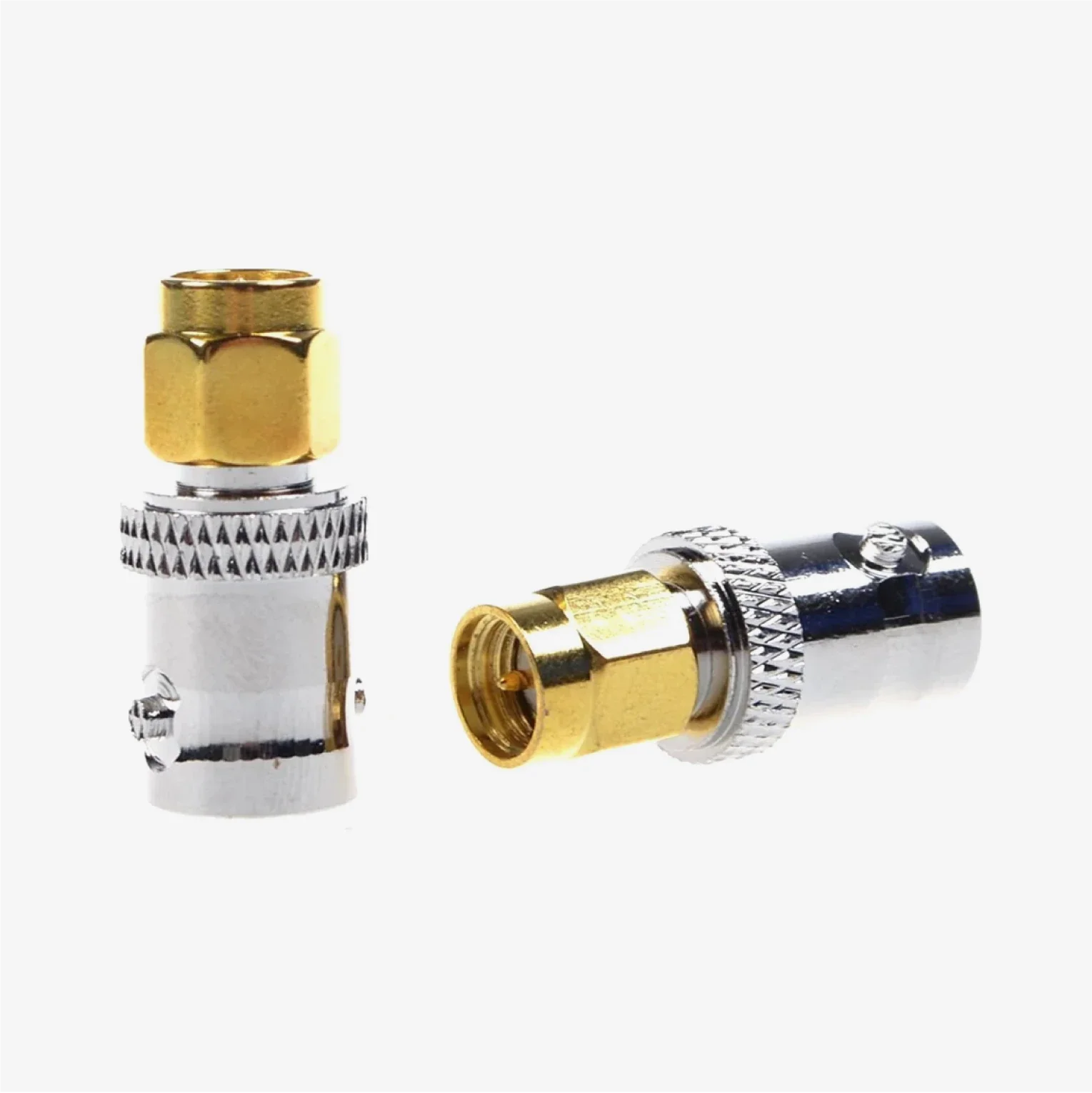

This adaptor converts the SDI output connector of a SmartyCam 3 GP HD or SmartyCam 3 Dual into A BNC female connector. This makes it easy to connect to industry-standard connections of live streaming video equipment.

We can also make a BNC cable, if required, at your desired length.

Technical

Characteristics
Impedance 50 Ω
Dielectric withstand voltage 2500V RMS, 50Hz, at sea level
Dielectric Resistance ≥5000MΩ
Connector Type SMA Male – BNC Female
Durability Mating Cycle ≥500
Electrical & Mechanical Specs.
Material and Plating
Body Brass / Nickel plating
Insulator PTFE
Centre Contact (pin) Beryllium, Brass / Gold plating
